OMNIAlog rugged data acquisition system
16 ANALOG INPUT CHANNEL DATALOGGER

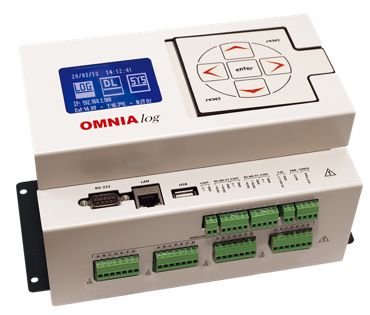

OMNIAlog data logger NI-816
The OMNIAlog NI-816 is a smart datalogger that provides an extensive array of features that allow it to be used across a wide variety of applications. The OMNIAlog NI-816 is a robust, stand alone, low power data logger featuring USB memory stick support, 16 universal analog input,24 bit resolution, extensive communications capabilities and built-in display.You can connect a wide range of sensor: temperature,voltage,current sensor and configure your system from remote session.
- 8/16 differential analog input
- 16 analog input for Measure temperature voltage current
- o,o1% range of measurement accuracy
- 2 GB Internal Memory
- On Board Display
- Internal Umidity and Temperature Sensor
- Vibration Wire Interface (OPTION)
- Electromechanical relays for each measuring channel
- Gas Discharge Tubes
4/8 CHANNEL DATALOGGER

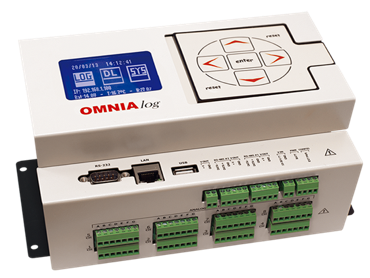

OMNIAlog Logger NI-480
The OMNIAlog NI-480 is a smart datalogger that provides an extensive array of features that allow it to be used across a wide variety of applications. The NI-480 is a robust, stand alone, low power data logger featuring USB memory stick support, 24 bit resolution, extensive communications capabilities and built-in display.
- 4/8 differential analog input
- Measure Temperature Voltage and Current
- o,o1% range of measurement accuracy
- 2 GB Internal Memory
- On Board Display
- Internal Umidity and Temperature Sensor
- Electromechanical relays for each measuring channel
- Gas Discharge Tubes
4 CHANNEL DATALOGGER
OMNIAlog Logger NI-400 MAVT GPRS
The OMNIAlog NI-400 MAVT is an ultra low powered logger with integral modem designed specifically for remote applications. The next step up from the NI-400 MAV, it has more analogue inputs and Modbus slave capabilities.
- 4 differential software programmable analog input
- Each of the 4 channels offers the virtual channel
- Measure Temperature Voltage and Current
- o,o5% range of measurement accuracy
- 2 GB Internal Memory
- GPRS Available
- Internal Umidity and Temperature Sensor
- Web Server
- Vibration Wire Interface (OPTION)
- Electromechanical relays for each measuring channel
- Gas Discharge Tubes
492/2 Soi Phatthanakan 38
Phatthanakan Rd,
Suanluang, Suanluang
Bangkok 10250 - Thailand
Tel. (+66)2-319 -6737 - Email: info@matcons-ltd.com

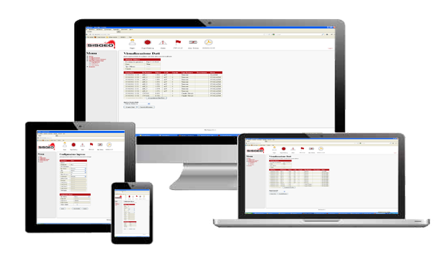

The Humidity,Temperature sensors and Battery Level are «on board». Therefore no measuring channel is utilized for that purpose.The web server interface provide datalogger set up.
DATA ACQUISITION SYSTEM WITH WEB SERVER ON BOARD
